Info: Rectangular loop, PVC pipe wrapped with aluminum foil. The frequency is tuned by sliding an aluminum-foil-covered tube back and forth in the upper segment.
Conductor: PVC pipe wrapped with aluminum foil.
Capacitor: Variable capacitor made from telescoping PVC pipes wrapped with aluminum foil.
Environment: Outdoor, details unknown.
Thanks: Many thanks to W6NBC (Silent Key) for the many publicly available contributions.
| Band | 40m | 10m | |
| Frequency f | MHz | 6.940 | 31.870 |
| Intrinsic bandwidth Bint | kHz | 200.0 | 700.0 |
| Source of Bint | SWR screenshot | ||
| Loop diameter D | m | 1.376 | |
| Conductor diameter d | m | 0.048 | |
| Loop count n | 1 | 1 | |
| Inductance L | H | 2.96e-06 | |
| Capacitance C | pF | 177 | 8.41 |
| Unloaded Q0 | 1 | 35 | 46 |
| Damping resistance RT | Ohm | 3.725 | 13.038 |
| Radiation resistance RR | Ohm | 0.0199 | 9.725 |
| Loss resistance RLoss | Ohm | 3.705 | 3.314 |
| Power to antenna Pfwd | W | 50 | 50 |
| swr_min | 1 | 2.70 | 1.10 |
| etaSWR_ant | % | 78.9 | 99.8 |
| Power antenna load Pload | W | 39 | 50 |
| Antenna efficiency η | % | 0.421 | 74.4 |
| Loop current I rms | A | 3.25 | 1.96 |
| Loop voltage Uloop rms | V | 421 | 1161 |
| Magnetic dipole moment m | A m² | 4.837 | 2.908 |
| Link to calculator | calculator | calculator | |

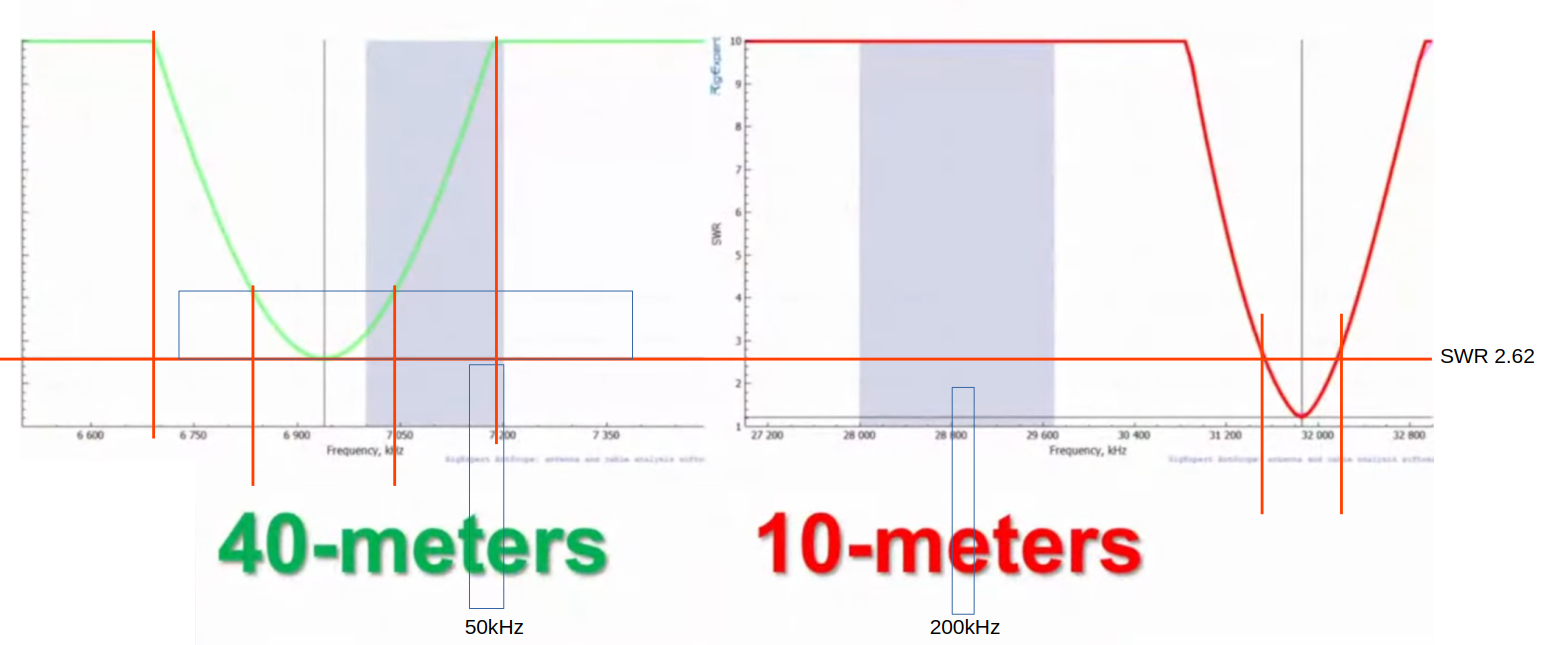

A video showed measured SWR versus frequency diagrams. I tried to estimate the corresponding bandwidths. This was reasonably possible for the 10 m band, but for the 40 m band it is only a rough estimate because the SWR was not tuned to 1.0, and from the measured values it is not clear whether the coupling is too strong or too weak.
